「 HS-5000 Product Details and Product Specification 」

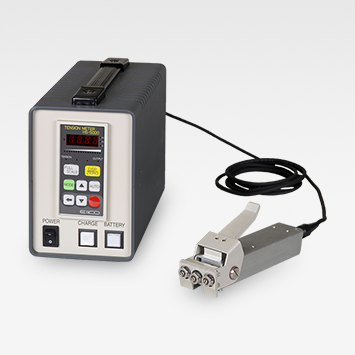

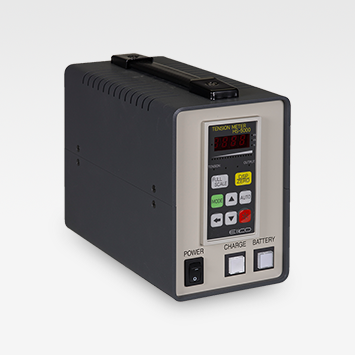

The tension meter HS-5000 is a device that displays the running tension of sheet type processed material such as paper, cloth, fiber, film, rubber, and metal, and outputs to recorder and external indicator.

Features of the HS-5000

  • New Product
  • Immediately deliverable
  • Portable
  • Analog Output
  • Compatible
  • Equipped with AC power and built-in battery to enable use as stationary or portable device
  • The auto-zero adjustment function enables zero adjustment with a touch of a button
  • Equipped with recorder output and analog external indicator output function
  • Detector for conventional model HS-3000 and HS-4000 can be connected directly

HS-5000 Product Specification

Model HS-5000
Power Supply 100 to 200 VAC and built-in battery

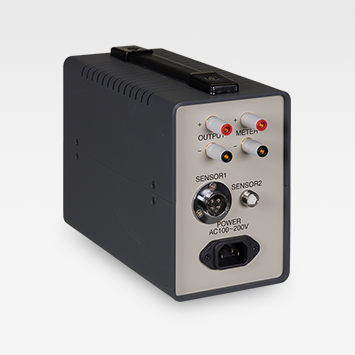

Output Recorder output: 0 to 10 V (variable) voltage output
External indicator output: 0 to 1 mA (variable) current output
Ambient environment Operating temperature range : 0~40℃
Weight 2.2Kg
Dimensions (W x H x D) 100 x 150 x 200mm
Response frequency 0.01~9.99Hz
Connectible Equipment Detectors such as H-2R and BTB1 can be connected directly

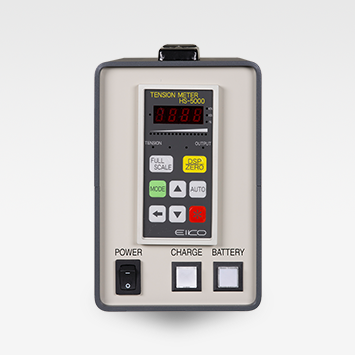

Adjustment method Touch-button auto zero adjustment function
Tension display range Numerical display ±999
Decimal display □□□、□□.□、□.□□
Display Unit N、x10N、KN
Battery operating time Approximately 4 hours continuous operation (after charging for 8 hours)
